Description

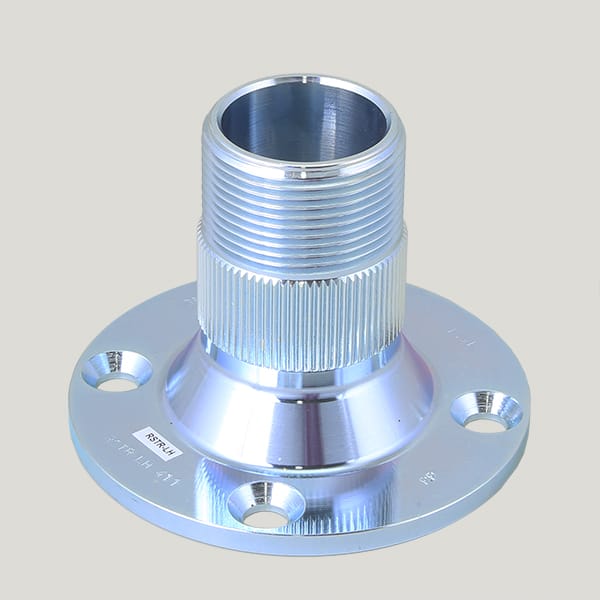

Triumph TR2-6 wire wheel hub adaptor LH
n
nAlso suitable for Triumph Stag
n
n
n
nIf you are converting from steel wheels to wire wheels (on a Triumph TR) for the first time you will need to reduce the length of the wheel studs to prevent the studs catching the back of the wheels.
n
nAlternatively you can fit a 6mm wheel spacer (see 217602S) behind the hub adaptor, this is a popular option allowing you to easily revert back to steel wheels if required.
n
n
n
| Type | Bolt-on nBolt-on splines, unless fitted as original equipment, will increase the track by approximately 1.25″ per wheel |
| Threads Per Inch (T.P.I.) | 8 |
| Size | 42mm nClick here for a guide to identifying hub sizes |
| Number of Stud Holes | 4 |
| P.C.D. | 4½” / 114.3 mm nClick here for instructions on measuring PCDs |
| P.C.D. | P.C.D. is the Pitch Circle Diameter and is the diameter of an imaginary circle drawn through the centres of the holes |
| Notes | Click here for a guide to fitting hubs, caps and centre-lock wire wheels |
